Product Features
JNH series -- Foundry machinery with up and down sand shooting way
The JNH Top and Bottom Sand Shooting Molding Machine is a servo-driven, high-pressure automatic molding solution designed to deliver superior mold quality for a wide range of casting requirements. Incorporating a top-and-bottom blow system, this automatic moulding machine for foundry achieves uniform sand compaction from both directions, effectively eliminating shadow effects and improving the surface finish of complex castings.
Available in single- or double-station configurations, the JNH series (foundry machining) features a rigid four-column structure for enhanced stability and an intuitive human-machine interface (HMI) for easy operation and process control. Key molding parameters such as extrusion pressure, mold height, and forming speed are fully adjustable to meet varying production needs.
By combining high-pressure hydraulic compaction, servo-controlled sand shooting, and automated mold ejection, the JNH series (moulding machine for foundry) offers a reliable, efficient, and operator-safe molding process ideal for high-volume, precision casting environments.
1. High-Speed Molding: The foundry machinery boasts a high-speed molding capability of up to 26 seconds per mold, without the need for additional core setting time, significantly increasing production efficiency.
2. Up and Down Sand Shooting Technology: The high pressure foundry machining equipped with vertical sand shooting technology, it is best suited for deep-pocket patterns to effectively eliminate shadowing, ensuring the quality of the castings.
3. Squeeze Pressure Balance Control: The squeeze pressure balance control ensures stable molding and prevents pattern distortion, enhancing the precision of the castings.
4. Mold Height Feedback Control: The mold height feedback control system reduces sand consumption and compensates for compaction variations, optimizing sand usage.
5. User-Friendly Operation: The high pressure moulding machine for foundry features a touch screen panel for easy operation, improving user-friendliness and reducing the difficulty of operation.
Product Parameter
JNH series -- Foundry machinery with up and down sand shooting
| Model | Mold Size | Mold Height from (Cope) | Mold Height to (Drag) | Average Maximum Mold Rate (without Core setting) | Molding System |
|---|---|---|---|---|---|
| JNH3545 | (300~380)*(400~480)mm | 130~250mm | 130~250mm | 26 seconds/mold (without core-setting time) | Edge Blow + Squeeze |
| JNH4555 | (400~480)*(500~580)mm | 130~250mm | 130~250mm | 26 seconds/mold (without core-setting time) | Edge Blow + Squeeze |
JNH5565 | (500~580)*(600~680)mm | 130~250mm | 130~250mm | 26 seconds/mold (without core-setting time) | Edge Blow + Squeeze |
JNH6575 | (600~680)*(700~780)m | 130~250mm | 130~250mm | 26 seconds/mold (without core-setting time) | Edge Blow + Squeeze |
JNH7585 | (700~780)*(800~880)mm | 130~250mm | 130~250mm | 26 seconds/mold (without core-setting time) | Edge Blow + Squeeze |
Company Profile
JUNENG Machinery Co., Ltd., founded in 2011, is a prominent player in the global foundry casting machine industry. As a subsidiary of Shengda Machinery Co., Ltd., JUNENG specializes in the development and production of cutting-edge foundry mould machine,vertical foundry machinery, and complete casting assembly lines. With a strong focus on innovation, JUNENG integrates advanced technology, high efficiency, and reliability into every product.
Product detail:
1. Advanced Bidirectional Sand Compaction Technology：
Our foundry machinery with up and down sand shooting way revolutionizes mold production by deploying simultaneous sand injection from both top and bottom directions. This innovative approach ensures uniform density distribution (95%+ compaction) and eliminates voids in complex patterns, making it ideal for precision foundry machining of intricate components like engine blocks or hydraulic valves. The bidirectional system guarantees flawless mold integrity, reducing casting defects by 50% compared to conventional methods. This technology is the core of our automatic moulding machine for foundry, enabling high-repeatability production for demanding industrial applications.
2. Fully Automated Turnkey Molding Solution：
Designed as a complete automatic moulding machine for foundry, this system integrates PLC-controlled automation for seamless operation. The machinery automates sand feeding, bidirectional shooting, high-pressure compaction (1,200-2,000 kN force), and mold ejection with ≤0.2mm dimensional tolerance. It serves as the centerpiece of a modern foundry line, compatible with foundry casting machine peripherals like automatic pouring systems and conveyor networks. With a output capacity of 200-450 molds/hour and reduced labor dependency, this equipment maximizes productivity while minimizing operational costs.
3. Superior Mold Quality for High-Value Castings：

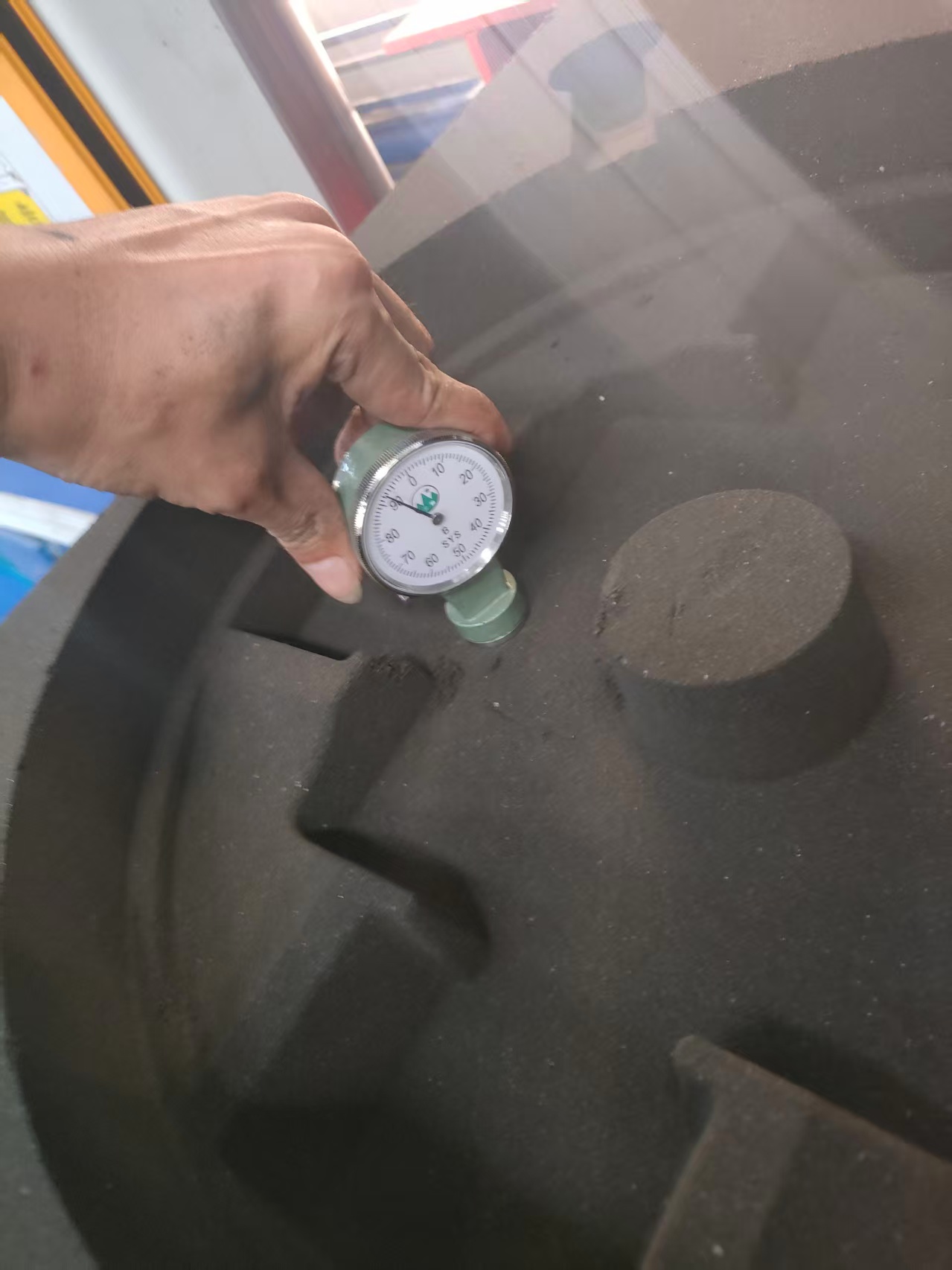

This foundry mould machine excels in producing molds with exceptional surface finish and dimensional accuracy. The up and down sand shooting way achieves consistent mold hardness (90-96 HB) throughout the cavity, preventing sand inclusion, veining, and other common defects. Its capability to handle large-size molds (up to 1500x1200mm) makes it a robust moulding machine for foundry applications requiring heavy-duty castings. The system’s precision ensures compliance with ISO CT7-8 tolerance standards, reducing machining allowances and material waste by 30%.
4. Industrial-Grade Durability and Reliability：
Engineered for 24/7 operation, this foundry casting machine features a reinforced steel frame, hardened shooting nozzles, and dust-resistant hydraulic systems. Its rugged construction withstands extreme foundry environments, ensuring ≤1% downtime and minimal maintenance. The machinery’s energy-efficient design reduces power consumption by 25% compared to traditional models, while its compatibility with green sand, resin sand, and cold-box binders offers operational flexibility. As a cornerstone of foundry machining processes, it delivers long-term reliability and a rapid return on investment.
5. Versatile Applications and Integrated Support：
This machinery supports diverse foundry machining needs, from automotive and aerospace to pump and valve manufacturing. Its bidirectional shooting technology accommodates complex geometries and deep pockets, ensuring complete pattern filling without density variations. As a comprehensive foundry mould machine, it includes integrated safety interlocks, real-time monitoring sensors, and IoT-ready connectivity for smart factory integration. The system can be customized with optional features like automatic pattern changers or sand temperature controllers, making it a future-proof solution for modern foundries.
Our Vision & Values
At JUNENG, our mission is clear: to lead the global moulding machine for foundry market through a relentless focus on quality, innovation, and customer satisfaction. We adhere to the core principles of “Market-driven, Quality-focused” in everything we do. By leveraging the latest technology, we consistently push the boundaries of what is possible in automatic moulding machine for foundry automation. We aim to provide our customers with not only cutting-edge foundry casting machine but also end-to-end solutions that enhance their production capabilities.
Global Reach & Industry Leadership
With a state-of-the-art manufacturing facility spanning over 10,000 square meters, JUNENG has firmly established itself as an industry leader. Our foundry mould machine are trusted by customers in over 20 countries, including the United States, Brazil, India, Russia, and Vietnam. Our global reach is further supported by a network of authorized agents and sales offices, ensuring that we can deliver localized service and technical support to all our international clients.
In addition to providing high-quality foundry machinery , JUNENG maintains a dedicated after-sales service system designed to offer timely technical support and assistance. Whether through direct service centers or our authorized partners, we are committed to creating lasting value for our customers and ensuring the seamless operation of their foundry machining.
Commitment to Innovation
As the casting industry evolves, so does JUNENG. We continuously monitor market trends and customer needs, adapting our solutions to meet the challenges of modern manufacturing. With strategic investments in research and development about sand moulding machine for foundry, we are poised to remain at the forefront of industry advancements, providing customers with state-of-the-art automatic moulding machine for foundry that improve performance, reliability, and cost-efficiency.
Conclusion
As a leading manufacturer of foundry machinery , JUNENG Machinery is dedicated to delivering world-class solutions that meet the evolving needs of the casting industry. With a commitment to quality, innovation, and customer satisfaction, we strive to remain the partner of choice for businesses looking to enhance their production capabilities and stay ahead in a competitive global market.
Our reputation for high-quality products and exceptional customer service has made us a preferred supplier for leading casting companies worldwide.
