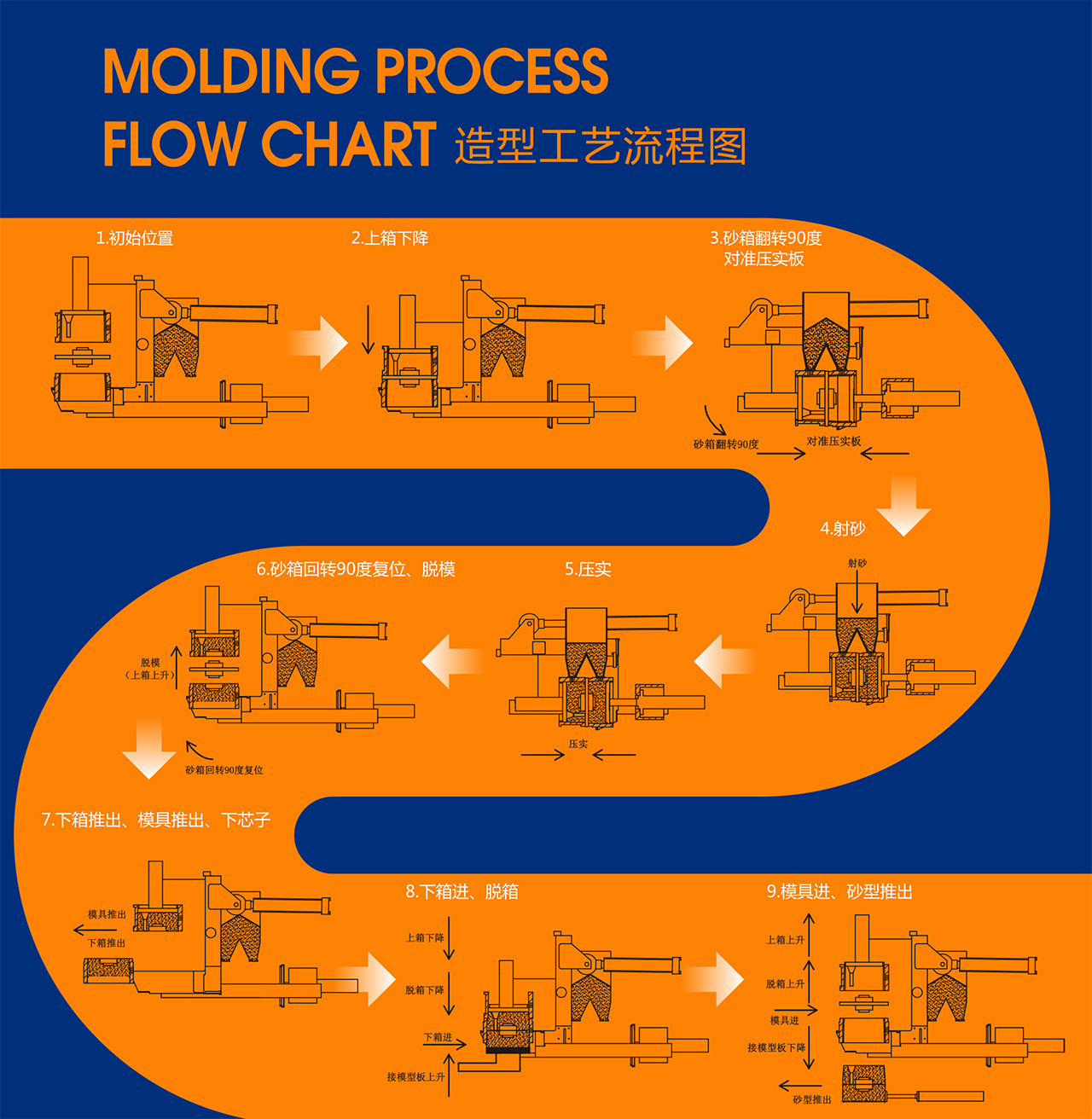

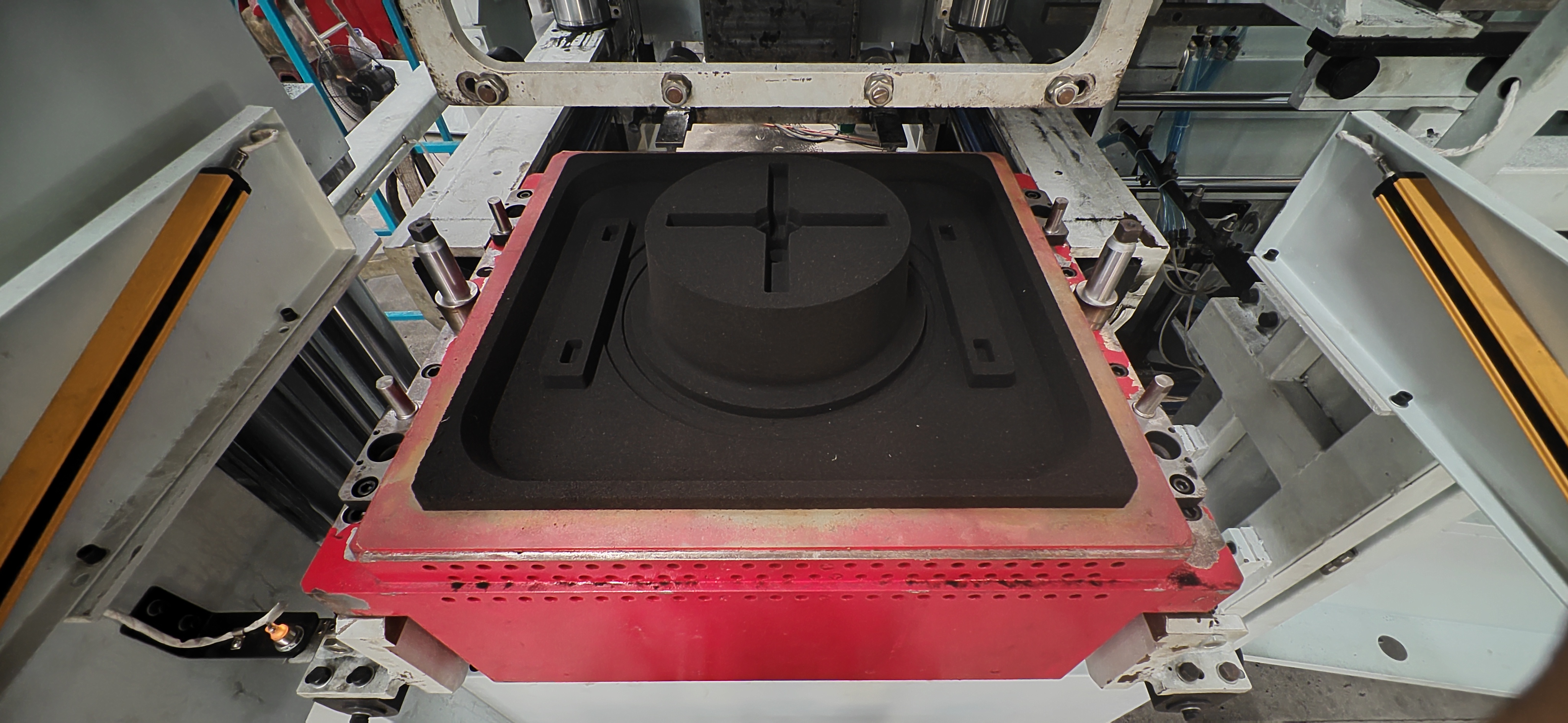

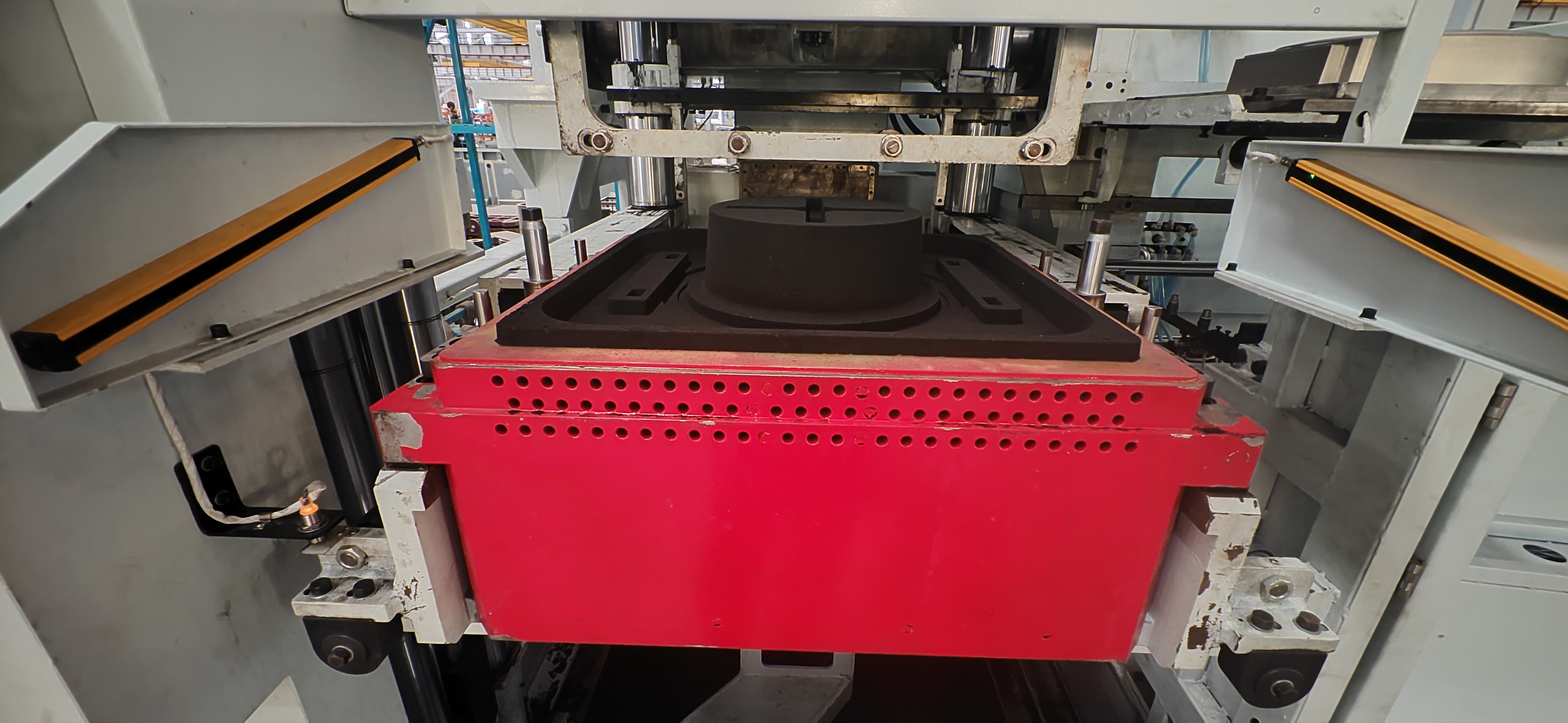

JN-FBO Foundry molding machine with vertical sand shooting and horizontal parting
1. Unmatched Precision with Vertical Sand Shooting & Horizontal Parting
Our foundry moulding machine combines the best of both technologies. The vertical sand shooting system ensures uniform sand density from the top down, eliminating voids and ensuring perfect mold reproduction. This is complemented by a horizontal parting system that allows for easy, automated mold handling and ejection, making it a highly efficient automatic molding machine.
2. Fully Automated, High-Speed Production
Designed for modern foundries, this automatic molding machine operates with minimal human intervention. The integrated PLC control system manages the entire cycle: sand filling, high-pressure vertical sand shooting, compaction, and horizontal parting for mold ejection. Achieve remarkable outputs of 160-300 molds per hour, drastically increasing your production capacity.
3. Optimized for Superior Green Sand Molding
This foundry green sand automatic molding machine is engineered specifically to maximize the advantages of green sand processes. The vertical sand shooting delivers consistent compaction, resulting in high mold hardness (85-92 HB) and exceptional casting surface finish. It ensures excellent stability for casting intricate parts like engine blocks and gearboxes.
4. Robust Design for Foundry Durability
Built for the demanding environment of a casting facility, this molding machine foundry model is constructed from heavy-duty steel. Its hardened components and sealed hydraulic systems are built to withstand 24/7 operation. The horizontal parting mechanism is engineered for smooth, reliable cycling with minimal maintenance requirements.
5. Cost-Effective and Space-Saving Operation
This sand molding machine foundry solution significantly lowers operating costs. It reduces labor needs, minimizes sand waste through efficient shooting, and consumes less energy. The streamlined design of this molding foundry machine with its horizontal parting process has a compact footprint, saving valuable floor space in your plant.
Applications: Ideal for high-volume production of automotive, plumbing, and machinery components.
- **Single station design, Compact size**
The JN-FBO foundry moulding machines is designed with a single station, making it compact and space-efficient. This design is ideal for foundries with limited floor space, allowing for optimal utilization of the available area.
- **Horizontal Parting**
The molding foundry machine features horizontal parting, which is a common and efficient method in the foundry industry. This design facilitates easy mold separation and simplifies the casting process.
- **Wide variety of mold dimensions**
The JN-FBO offers a wide range of mold sizes to accommodate different molding machine foundry. This flexibility ensures that sand molding machine foundry can be used for various types of castings, making it a versatile addition to any foundry.
- **Average max mold rate of 130 molds/hour**
With an average maximum mold rate of 130 molds per hour, the JN-FBO foundry molding machine is designed for high productivity. This high output rate helps foundries increase their production capacity and meet higher demand.
- **Virtually No Spill Sand or Strike-off Sand**
The foundry green sand automatic molding machine is designed to minimize spillage and strike-off sand, reducing waste and maintaining a cleaner working environment. This feature not only saves on material costs but also enhances overall operational efficiency.
- **No Pits**
The JN-FBO foundry moulding machines operates without the need for pits, which simplifies the installation process and reduces the overall footprint of the molding foundry machine. This design also enhances safety by eliminating the risk associated with working in or around pits.
- **No Bottom Boards required**
The molding machine foundry does not require bottom boards, which reduces the need for additional materials and maintenance. This feature contributes to lower operational costs and a more streamlined production process.
- **Mold To Mold Consistency**
The JN-FBO sand molding machine foundry ensures consistent mold quality from one mold to the next. This consistency is crucial for maintaining high-quality castings and reducing the likelihood of defects.
- **Maintenance Friendly**
The foundry molding machine is designed with maintenance in mind, making it easy to service and keep in optimal working condition. This feature helps reduce downtime and ensures that the machine remains reliable over its lifespan.
- **Programmable Hydraulic Squeeze**
The hydraulic squeeze system is programmable, allowing operators to adjust the pressure according to the specific requirements of each casting. This flexibility ensures high-quality molds and consistent results.
- **Quick Pattern Change Features**
The JN-FBO foundry moulding machines includes features that facilitate quick pattern changes. This capability is essential for foundries that need to switch between different casting designs frequently, reducing changeover time and increasing efficiency.
- **Left Hand or Right Hand models available**
The molding foundry machine is available in both left-hand and right-hand configurations, providing options to suit the specific layout and workflow of different foundries.
- **Automatic drag shuttle mechanism for safe, comfortable, and easy core setting**
The automatic drag shuttle mechanism ensures that core setting is safe, comfortable, and easy. This feature enhances operator comfort and reduces the risk of injury, contributing to a safer work environment.
Product Parameter
JN-FBO Foundry molding machine with vertical sand shooting and horizontal parting
| Model | Mold Size | Mold Height from (Cope) | Mold Height to (Drag) | Average Maximum Mold Rate (without Core setting) | Molding System |
|---|---|---|---|---|---|
JN-FBO3 | 20" x 24" | 5" - 8" | 5" - 8" | 130 molds/hour | Edge Blow + Squeeze |
| 500 mm x 600 mm | 130 mm - 200 mm | 130 mm - 200 mm | 130 molds/hour (27 seconds/mold) | Edge Blow + Squeeze | |
550 mm x 650 mm | 130 mm - 200 mm | 130 mm - 200 mm | 130 molds/hour (27 seconds/mold) | Edge Blow + Squeeze | |
JN-FBO4 | 24" X 28" (609.6 mm x 711.2 mm) | 7" - 10" | 7" - 10" | 100 molds/hour (36 seconds/mold) | Edge Blow + Squeeze |
| 600mm x 700mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour | Edge Blow + Squeeze | |
| 650 mm x 750mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour | Edge Blow + Squeeze | |
JN-FBO5 | 24" X 30" (609.6 mm x 762 mm) | 9" - 12" | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze |
| 700 mm x 900 mm) | 9" - 12" (230 mm- 300 mm) | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze | |
800 mm x 600 mm) | 9" - 12" (230 mm- 300 mm) | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze |
