Product Features

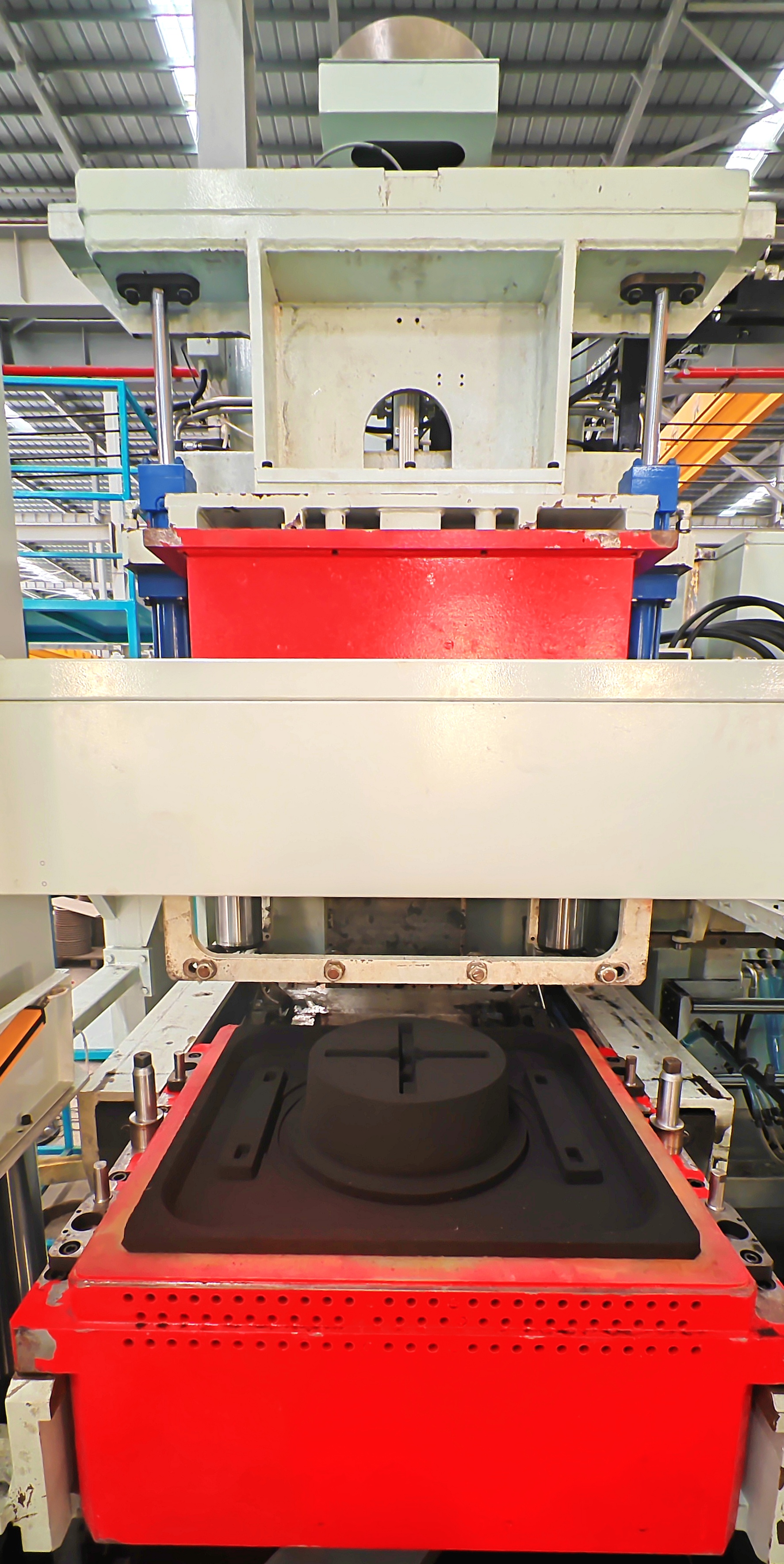

JN-FBO Green sand automatic foundry line with vertical sand shooting and horizontal parting
*Single station design, Compact size
The JN-FBO foundry liner is designed with a single station, making it compact and space-efficient. This design is ideal for foundries with limited floor space, allowing for optimal utilization of the available area.
*Horizontal Parting
The moulding line foundry features horizontal parting, which is a common and efficient method in the foundry industry. This design facilitates easy mold separation and simplifies the casting process.
*Wide variety of mold dimensions
The JN-FBO offers a wide range of mold sizes to accommodate different metal foundry tools equipment. This flexibility ensures that equipments for foundry can be used for various types of castings, making it a versatile addition to any foundry.
*Average max mold rate of 130 molds/hour
With an average maximum mold rate of 130 molds per hour, the JN-FBO green sand automatic foundry line is designed for high productivity. This high output rate helps foundries increase their production capacity and meet higher demand.
*Virtually No Spill Sand or Strike-off Sand
The foundry liner is designed to minimize spillage and strike-off sand, reducing waste and maintaining a cleaner working environment. This feature not only saves on material costs but also enhances overall operational efficiency.
*No Pits
The JN-FBO high pressure moulding line foundry operates without the need for pits, which simplifies the installation process and reduces the overall footprint of the molding foundry machine. This design also enhances safety by eliminating the risk associated with working in or around pits.
*No Bottom Boards required
The metal foundry tools equipment does not require bottom boards, which reduces the need for additional materials and maintenance. This feature contributes to lower operational costs and a more streamlined production process.
*Mold To Mold Consistency
The JN-FBO equipments for foundry ensures consistent mold quality from one mold to the next. This consistency is crucial for maintaining high-quality castings and reducing the likelihood of defects.
*Maintenance Friendly
The green sand automatic foundry line is designed with maintenance in mind, making it easy to service and keep in optimal working condition. This feature helps reduce downtime and ensures that the machine remains reliable over its lifespan.
*Programmable Hydraulic Squeeze
The hydraulic squeeze system is programmable, allowing operators to adjust the pressure according to the specific requirements of each casting. This flexibility ensures high-quality molds and consistent results.
*Quick Pattern Change Features
The JN-FBO foundry liner includes features that facilitate quick pattern changes. This capability is essential for foundries that need to switch between different casting designs frequently, reducing changeover time and increasing efficiency.
*Left Hand or Right Hand models available
The metal foundry tools equipment is available in both left-hand and right-hand configurations, providing options to suit the specific layout and workflow of different foundries.
*Automatic drag shuttle mechanism for safe, comfortable, and easy core setting
The automatic drag shuttle mechanism ensures that core setting is safe, comfortable, and easy. This feature enhances operator comfort and reduces the risk of injury, contributing to a safer work environment.
Product Parameter
JN-FBO Green sand automatic foundry line with vertical sand shooting and horizontal parting
| Model | Mold Size | Mold Height from (Cope) | Mold Height to (Drag) | Average Maximum Mold Rate (without Core setting) | Molding System |
|---|---|---|---|---|---|
JN-FBO3 | 20" x 24" | 5" - 8" | 5" - 8" | 130 molds/hour | Edge Blow + Squeeze |
| 500 mm x 600 mm | 130 mm - 200 mm | 130 mm - 200 mm | 130 molds/hour (27 seconds/mold) | Edge Blow + Squeeze | |
550 mm x 650 mm | 130 mm - 200 mm | 130 mm - 200 mm | 130 molds/hour (27 seconds/mold) | Edge Blow + Squeeze | |
JN-FBO4 | 24" X 28" (609.6 mm x 711.2 mm) | 7" - 10" | 7" - 10" | 100 molds/hour (36 seconds/mold) | Edge Blow + Squeeze |
| 600mm x 700mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour | Edge Blow + Squeeze | |
| 650 mm x 750mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour | Edge Blow + Squeeze | |
JN-FBO5 | 24" X 30" (609.6 mm x 762 mm) | 9" - 12" | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze |
| 700 mm x 900 mm) | 9" - 12" (230 mm- 300 mm) | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze | |
800 mm x 600 mm) | 9" - 12" (230 mm- 300 mm) | 9" - 12" (230 mm- 300 mm) | 90 molds/hour | Edge Blow + Squeeze |
